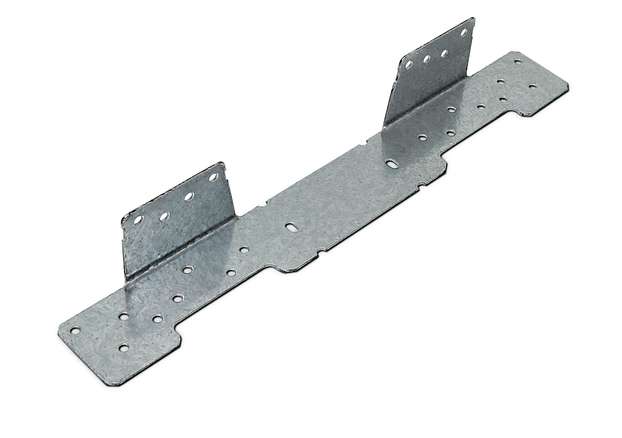

Description
Key Features
- Replaces additional framing and toe-nailing.

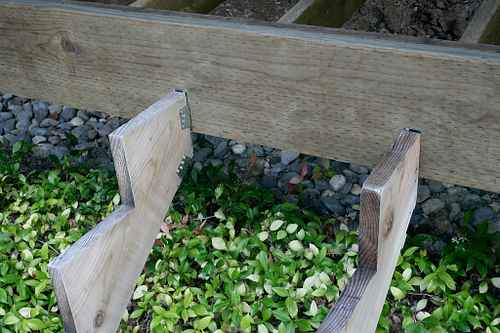

- May be installed flush with the top of the carrying member (typically suitable for 2×10 or 2×12 header / rim board) or lower on the face (typically suitable for a 2×12 header / rim board).
- Interchangeable for left or right applications.
- LSCZ features a ZMAX® coating for additional corrosion protection. Suitable for interior and some exterior applications. LSCSS is made from stainless steel for higher exposure environments. See Corrosion Information.
Finish
- LSCZ — ZMAX coating
Installation
- Use all specified fasteners; see table.
- Before fastening, position the stair stringer with the LSC on the carrying member to verify where the bend should be located.

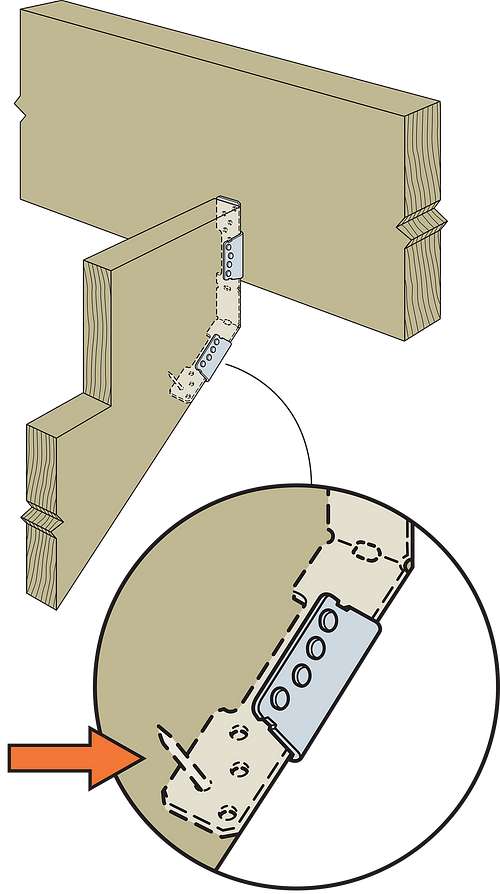

- The fastener that is installed into the bottom edge of the stringer must go into the second-to-last hole.
- When installed on 1 5/16″ LVL or a 1 1/4″ LSL stringer, additional items that will not affect the structural performance of the LSC, but should be considered, include the following:
— LSC stringer flange will protrude 1/4″ from face of stringer. As such, it is recommended the LSC be installed with the tabs positioned to the outside of the stringer.
— 1 1/2″ fasteners installed into 1 1/4″ LSL stringer will protrude from the opposite side.
